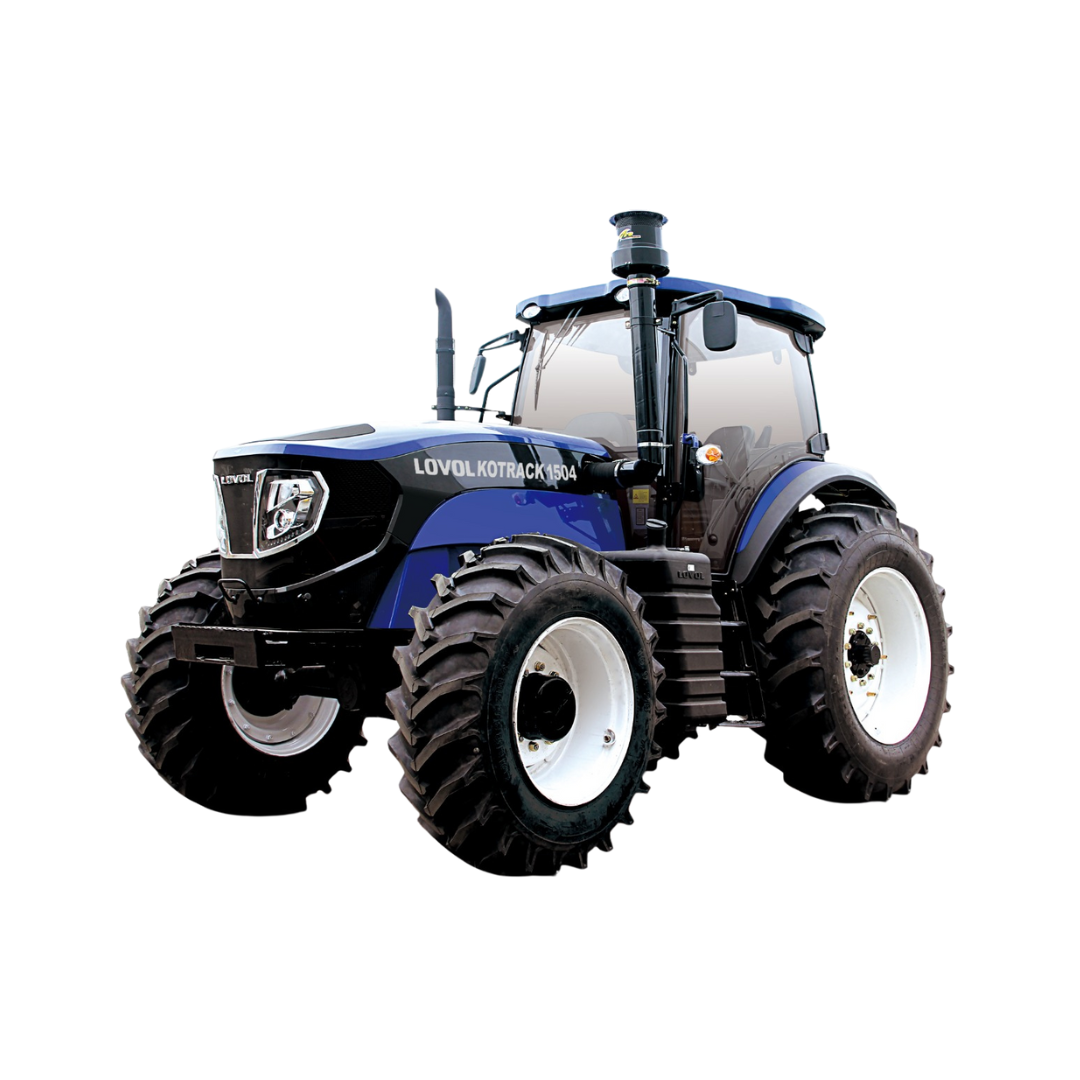

PRODUCT SPECIFICATIONS
ENGINE
- Rated Power: 150 HP
- Aspiration: Turbo + Intercooling
- Maxi Torque: 677 NM
- Number of Cylinder: 6
- Fuel Tank Capacity: 350 L
- Air Cleaner: Dry-type + KleanAire
- Fuel Consumption: 22 L/h
- ENGINE: Shangchai SCH7160G2
TRANSMISSION
- Driving Type: 4WD
- Clutch: 14 Inch Mechanical Dual Clutch of LUK
- Gearbox: Sinkronisasi 16FEW + 16REV
- PTO Speed: 540/1000
- PTO Shaft: 6+8+21 Splines
- Front Axle: Lovol
BRAKES
- Driving Brake: Hydraulic Oil Immersed Disc Brakes
- Parking Brake: Independent Hand Brake
Hydraulics
- Lifter Type: High Pressure Split-type Hydraulic Lifter
- 3 Point Linkage: Cat III
- Hydraulic Lifting Capacity at Lift Point: 4500 KG
- Hydraulic Lifting Capacity at 610 mm: 3500 KG
- No. of Spool Valves: 4
Cabin or Rops
- Cabin with AC: Available
Tyre
- Front: 14.9-28
- Rear: 18.4-38
Dimension & Weight
- Dimension: 5300 × 2620 × 3150 mm
- Ground Clearance (Min): 450 mm
- Gross Structure Weight: 6360 KG
- Wheel Base: 2727 mm
others
