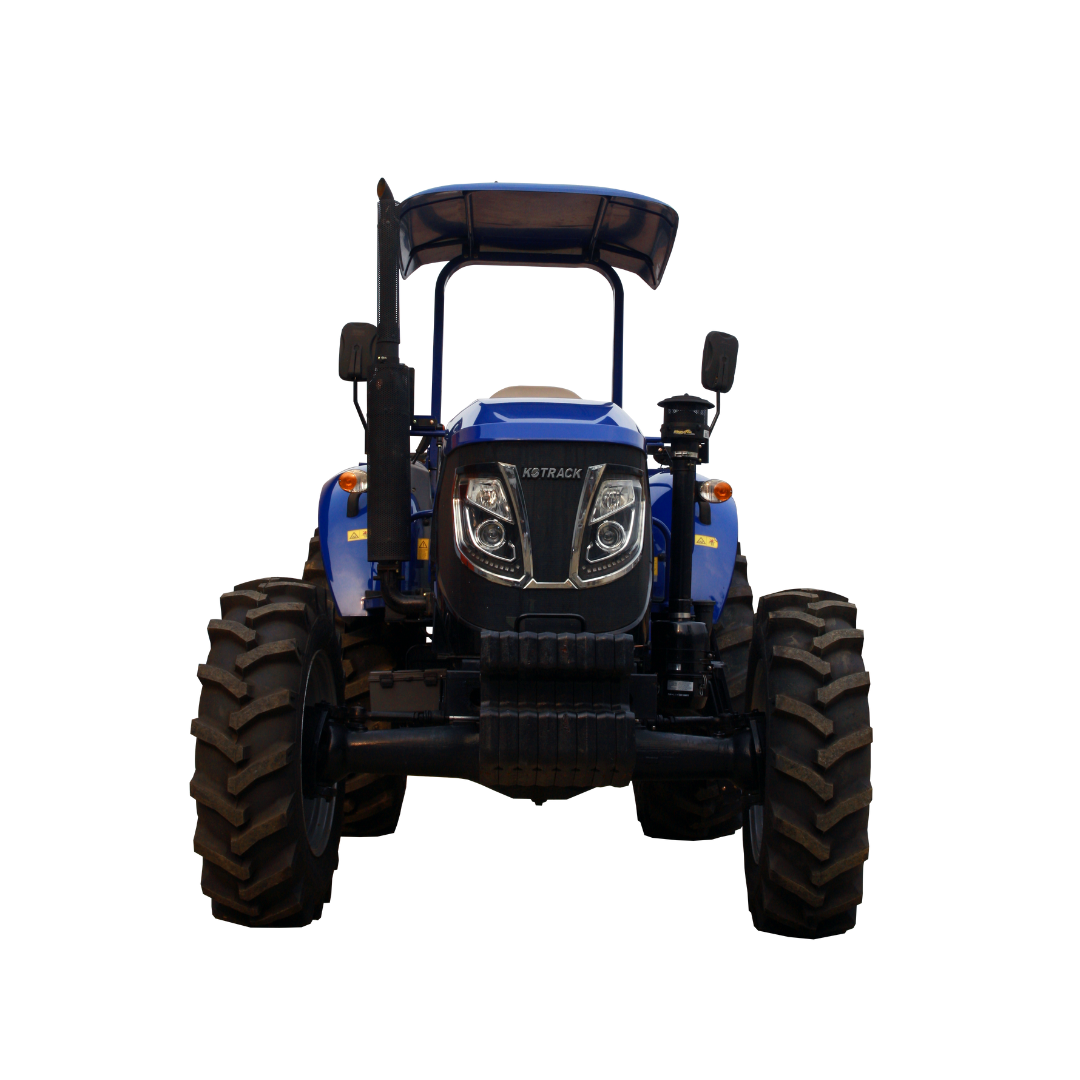

PRODUCT SPECIFICATIONS
ENGINE
- Rated Power: 90 HP
- Aspiration: Turbo
- Maxi Torque: 420 NM
- Number of Cylinder: 4
- Fuel Tank Capacity: 145 L
- Air Cleaner: Wet-type + KleanAire
- ENGINE: Huafeng 4RMIZT22
TRANSMISSION
- Driving Type: 4WD
- CLUTCH: Mechanical Dual Clutch of 12 inch LUK
- GEARBOX: Shuttle Collar 16FEW+8REV
- PTO Speed: 540/1000
- PTO Gear: 6 Splines
- Front Axle: Lovol
BRAKES
- DRIVING BRAKE: Hydraulic Oil Immersed Disk Brakes
- PARKING BRAKE: Independent Type
Hydraulics
- Lifter Type: High Pressure Split-type Hydraulic Lifter
- 3 Point Linkage: Cat II
- Hydraulic Lifting Capacity at Lift Point: 3800 KG
- Hydraulic Lifting Capacity at Lift Point at 610mm: 2000 KG
- No. of Spool Valves: 2
Cabin or Rops
- Cabin with AC (Optional)
- ROPS with Sunshade (Available)
Tyre
- Front: 12.4-24
- Rear: 18.4-30
Dimension & Weight
- Dimension: 4670 x 2150 x 2900
- Ground Clearance (min): 405 mm
- Gross Structure Weight: 3860 KG
- Wheel Base: 2405 mm
