Product Specifications
WORKING RANGE
- Boom Length: 2170 mm
- Arm Length: 1100 mm
- Max Digging Reach: 4400 mm
- Max Digging Depth: 2712 mm
- Max Digging Height: 4000 mm
- Max Dumping Height: 2920 mm
- Minimum Swing Radius: 1865 mm
- Rear Swing Radius: 1310 mm
- Max Ground Digging Range: 4300 mm
- Max Vertical Digging Depth: 1500 mm
PERFORMANCE PARAMETER
- Machine Weight: 2400 kg
- Engine Model: YANMAR 3TN88
- Power: 20.3 kW / 2400 rpm
- Hydraulic System: 20 MPa
- Swing System: 12 rpm
- Travel Speed: 0~4.5 km/h
- Bucket Digging Force: 16.3 kN
- Arm Digging Force: 11.2 kN
- Grade Ability: 30°
- Ground Pressure: 33 KPa
HYDRAULIC SYSTEM
- Hydraulic Pump: TIANJI F314/F314/F304
- Main Control Valve: PARKER 1261
- Swing Device: SANYANG BMT-195
- Travel Device: NACHI PHV-2B-20B-B502A
OVERALL DIMENSIONS
- Overall Width: 1330 mm
- Overall Height: 2330 mm
- Overall Length: 4428 mm
- Min. Ground Clearance: 225 mm
- Track Width: 450 mm
- Track Gauge: 230 mm
- Bucket Capacity: 0.07 m³

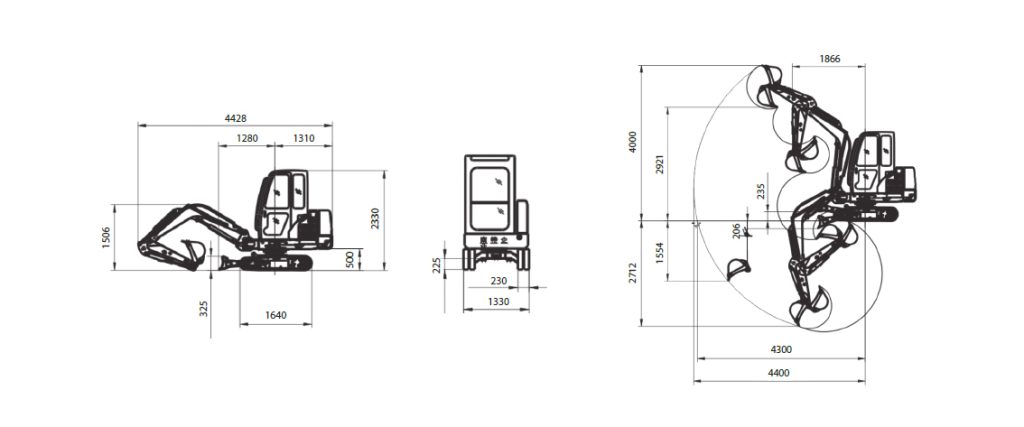

BLUEPRINT
